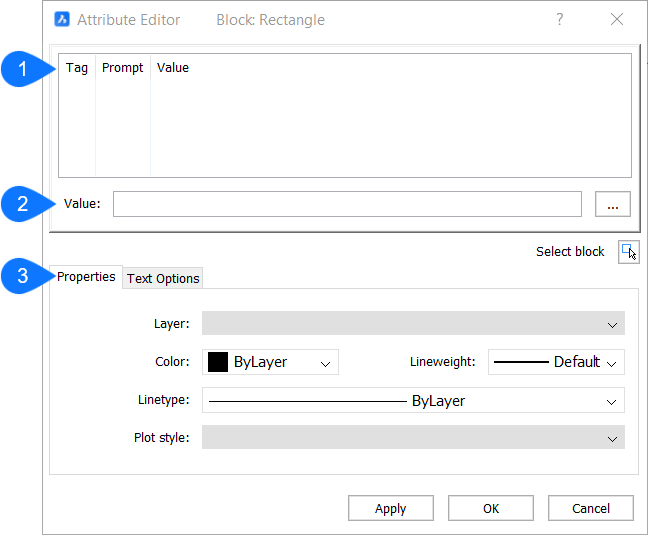

Attribute editor dialog box

The attribute Editor dialog box allows you to edit attributes within blocks.

  1. Overview list
  2. Value
  3. Properties
  4. Text Options

Overview list

Displays an overview of all attributes used in the block.

Value

Displays the currently selected attribute from the list. A new value can be typed.

Properties

Specifies properties of the selected attribute.

Layer
Specifies the layer of the selected attribute.
Color
Specifies the color of the selected attribute.
Linetype
Specifies the linetype of the selected attribute.
Plot style
Specifies the plotstyle of the selected attribute.

Text Options

Text style
Specifies the font of the text in the selected attribute.
Justification
Specifies the alignment of the text in the selected attribute.
Upside down
When checked, text is displayed upside down.
Backwards
When checked, text is displayed backwards.
Height
Specifies the height of the text in the selected attribute.
Rotation
Specifies the rotation angle of the text in the selected attribute.
Width factor
Specifies the width of the text in the selected attribute.
Oblique angle
Specifies the oblique angle of the text in the selected attribute.
