BIMFLOWCONNECT command

Creates a connection between flow segments.

Icon:

Description

Creates a connection between flow segments, such as pipes or HVAC ducts.

Note: When more than 2 flow segments are selected, the axes of the selected segments must be coplanar. When multiple coplanar segments are selected, the connections are created. When two non-coplanar solids are selected, an extra connection element is introduced.

Options

Switch
Switches between possible connections.

Alternatives for circular flow segments:

Alternatives for rectangular flow segments:

Note: Press Ctrl key to cycle between different types of connection. Hot Key Assistant must be set ON.
Reducers

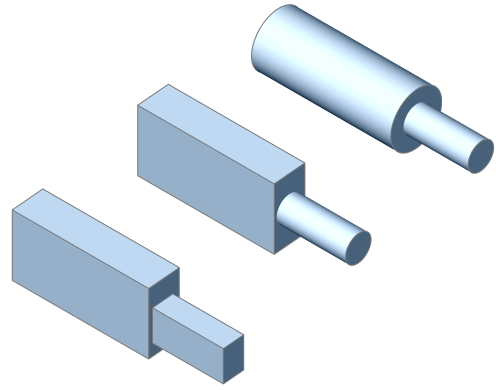

When the section of the selected flows is different, reducer elements are inserted.
Note: The creation of bends and reducers is controlled by user preferences.
