SMRIBCREATE command
Creates associative Rib form features on sheet metal.
Icon:
Description
Creates associative Rib form features on sheet metal parts from 2D profiles. The feature is updated automatically when its defining profile is changed.
The difference with linear rib features inserted from the library by BMINSERT command is that rib features created by SMRIBCREATE command can have an arbitrary trajectory.
Method
There are two methods to create rib form features:
- Profile radius
- Round radius
Options within the command
- Select control curve
- Selects a control curve along which the rib will be created. The selected curve can be a line, polyline, circle, arc, ellipse, elliptical arc or a spline. The 2D curve can be open or closed but cannot intersect itself or other form features.
-
- Profile radius

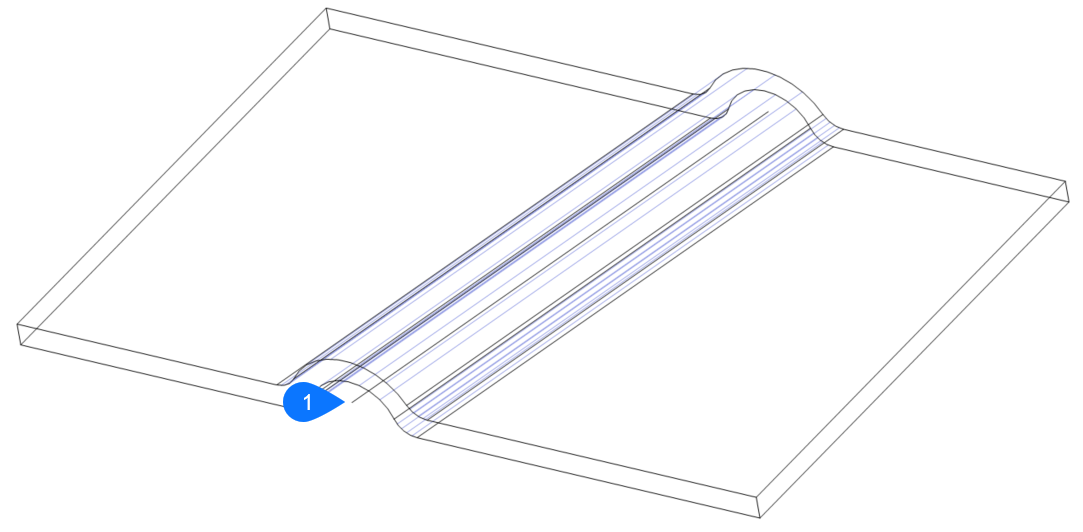

- Sets the radius of the rib profile (1).
-
- Round radius
- Sets the radius of the smoothing fillets (2).
-
