DMCOPYFACES command

Copies a feature from a 3D solid.

Icon:

Description

Copies a set of 3D solid faces forming a protrusion or depression feature, such as holes, pockets, extrusions, ribs, and their combinations within the same 3D solid or from one 3D solid to another.

Options within the command

Select entities: Select all faces of the entire feature.

Base point: Specify the base point.

Insertion point: Allows you to select an insertion point.

Rotate: Rotates the faces around the Z axis of the UCS.

mUltiple: Insert multiple copies of a feature.

MOde: Toggles between various cutting options.

Placement Face: Cuts the copied feature so that it suits the placement face.

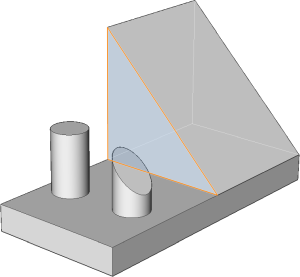

Select Faces: Cuts the copied feature so that it suits the selected face.

No Cut: Does not cut the copied feature.
